gridfinity-cardboard-skeleton

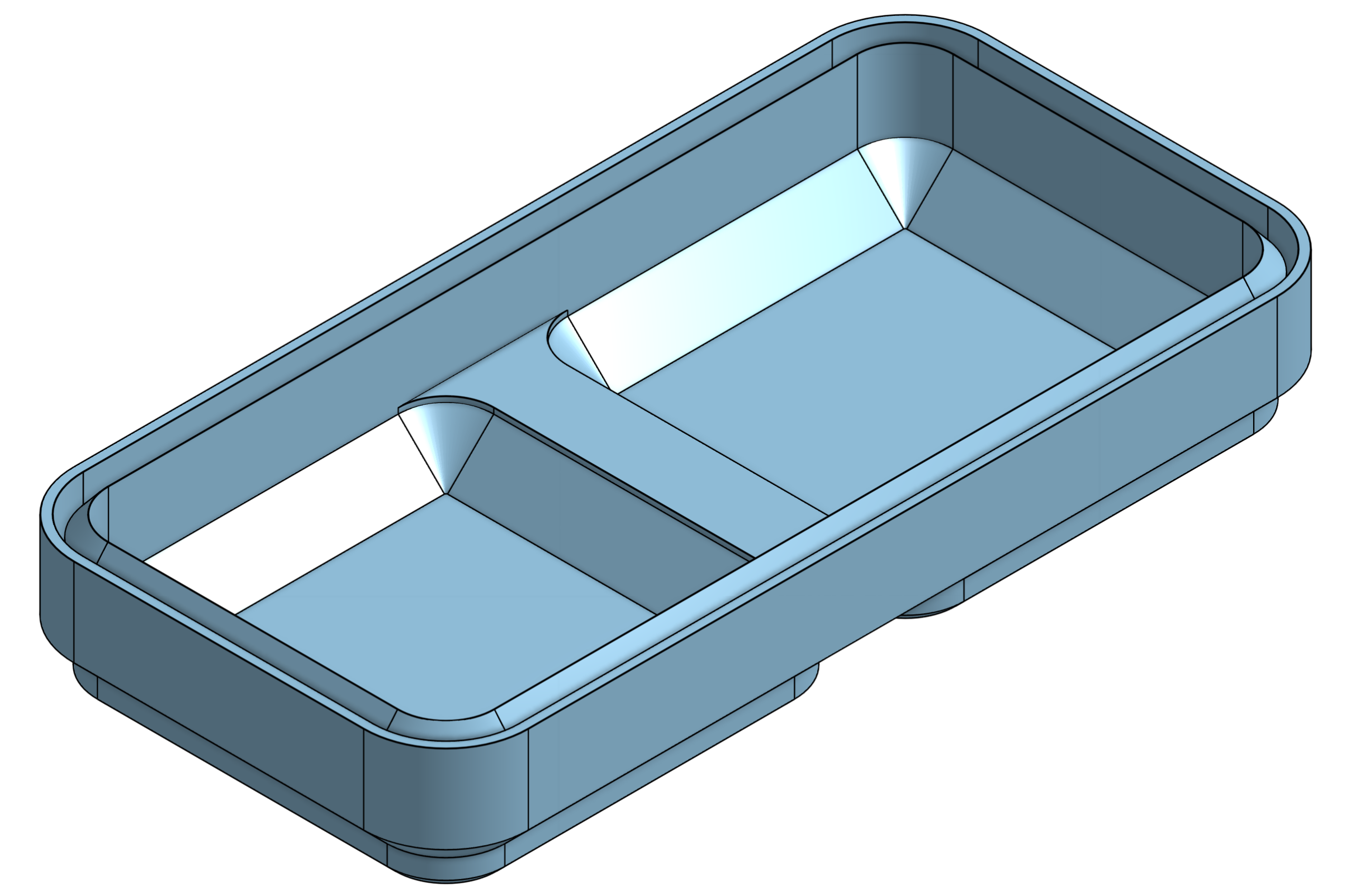

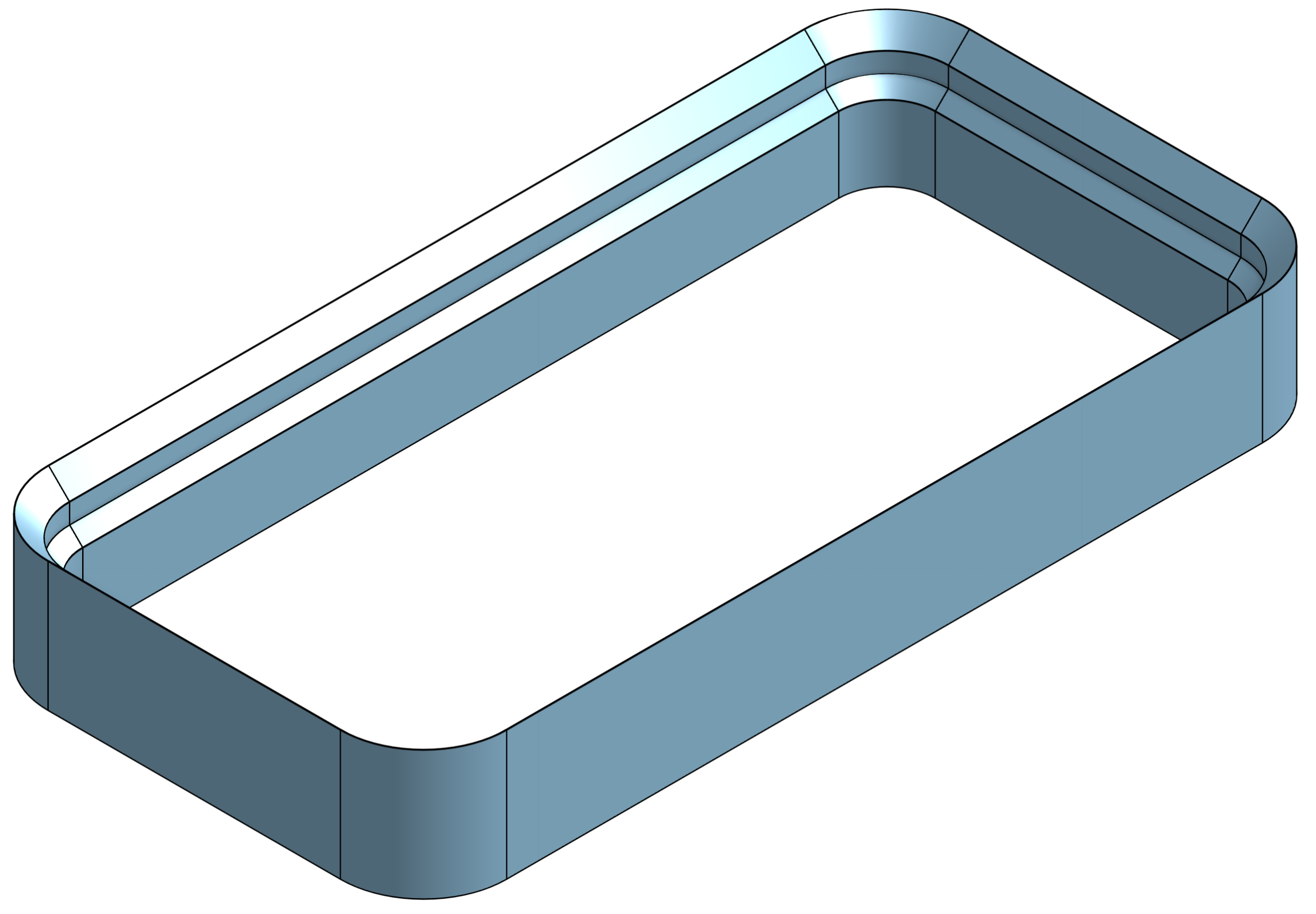

This project contains CAD files for gridfinity bins, specifically bases and lids. The walls are meant to be constructed out of cardboard.

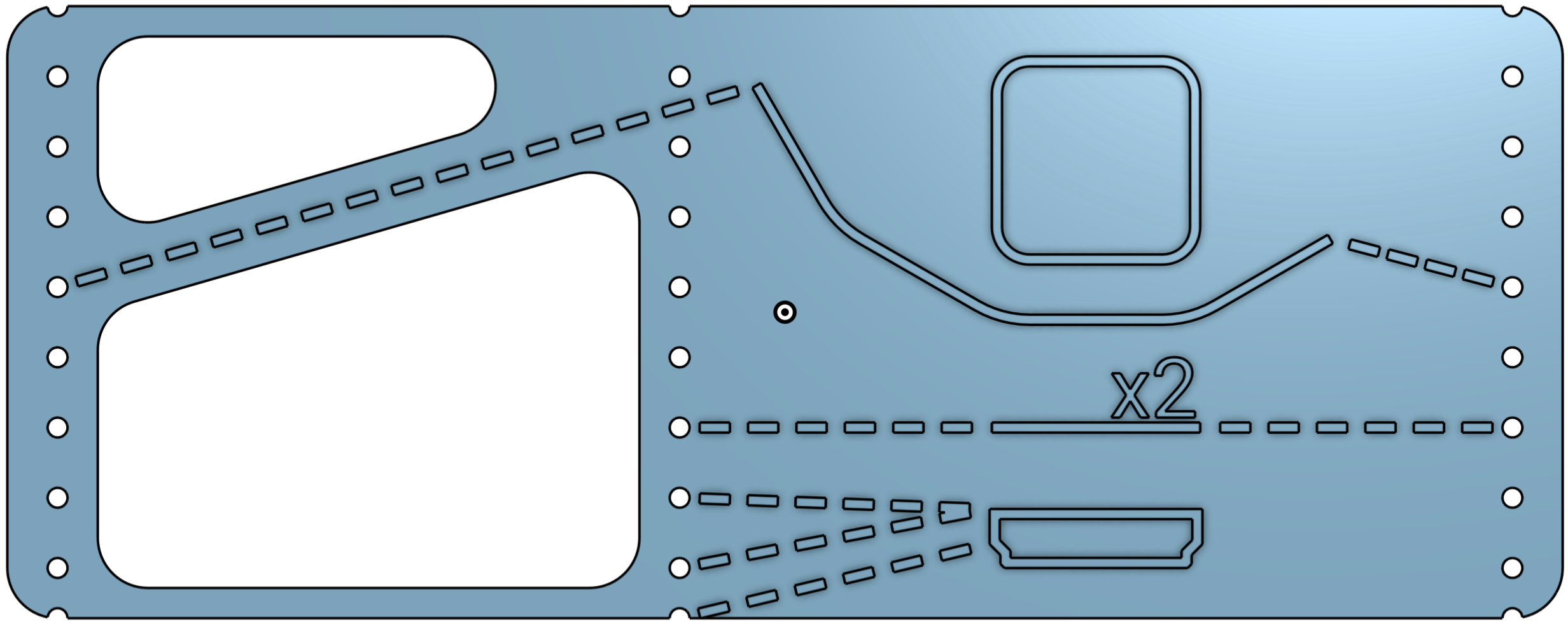

A ruler to help cut the cardboard to size is also included.

Notes About 3D Printing

All models can be printed with a 0.6mm diameter nozzle.

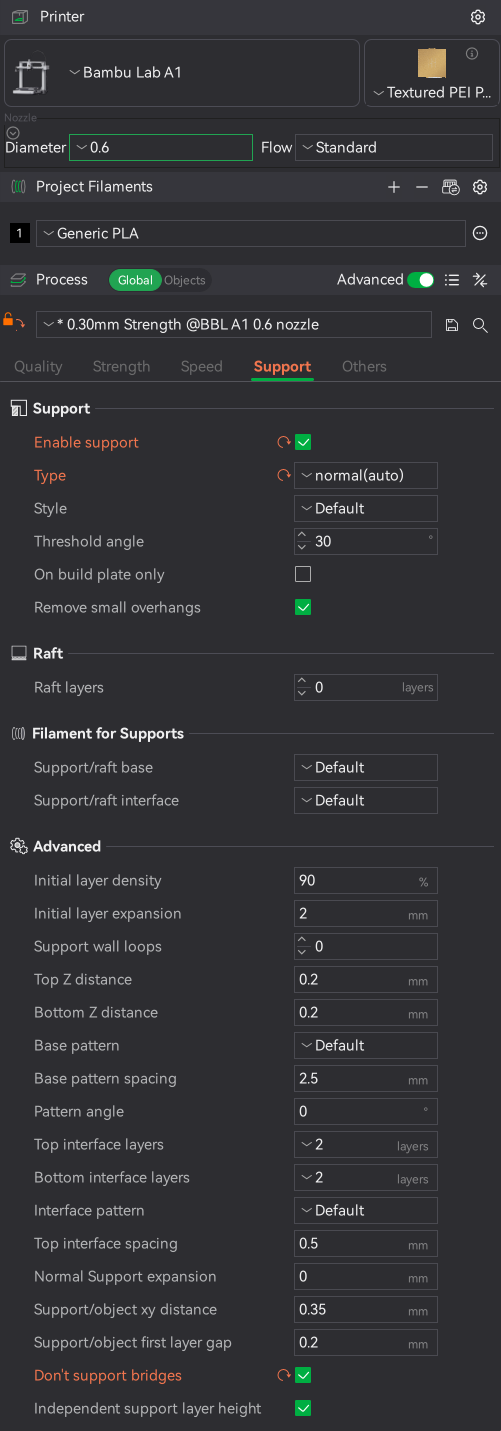

For the base models with magnet holes, supports are required. It is recommended to

  • enable normal (non-tree) supports
  • not support bridges, as this leads to redundant supports for this model

This project was heavily inspired by this one.
